Hebei Honde Plastic & Metal Co., Ltd.

Ground Screw Design,Ground Screw Deck,Ground Screw Anchors Nz

U Type Ground Screw Design

Share to:
    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Incoterm: FOB,CFR,CIF,FCA,CPT
    Min. Order: 100 Piece/Pieces
    Delivery Time: 20 Days

Basic Info

Model No.: HDU71*685

Material: Q235

Surface: Galvanized

Market: All Over The World

Warranty: Over Ten Years

Duration: Over 20 Years

Diameter: 68mm

U Open: 71mm

Factory: We Are Factory

Length: 685mm

Sample: Avaliable

Additional Info

Packaging: Pallet or Cartons or customized

Productivity: 3500 pcs per day

Brand: Honde

Transportation: Ocean,Land,Air,DHL/FedEx/TNT/EMS

Place of Origin: Xingtai Hebei, China

Supply Ability: 3500 pcs per day

Certificate: ISO9001,BSCI,CE,BV,TUV

HS Code: 73269090

Port: Xingang,Shanghai,Ningbo

Product Description

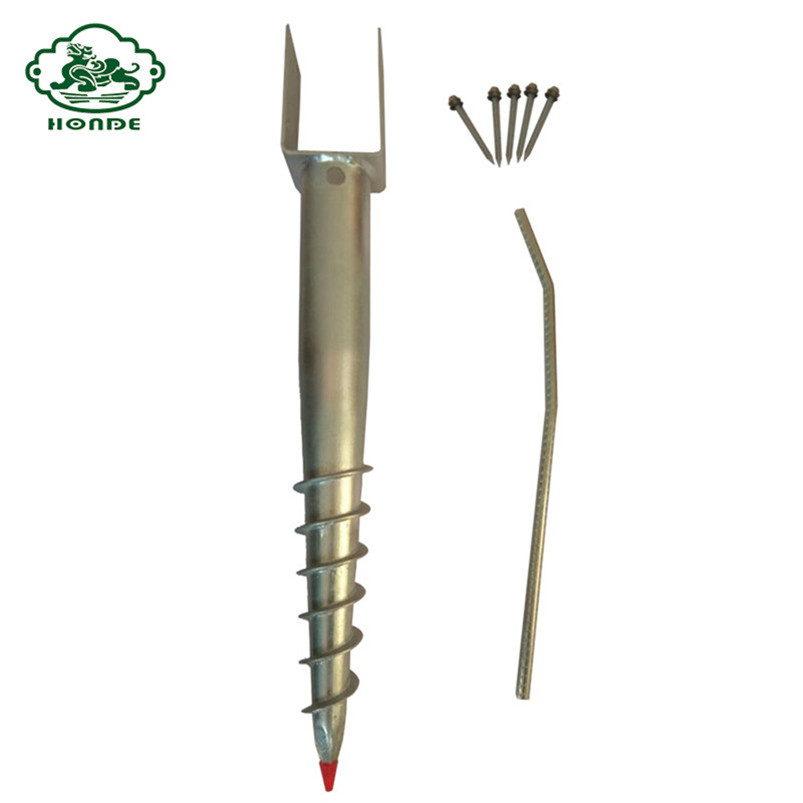

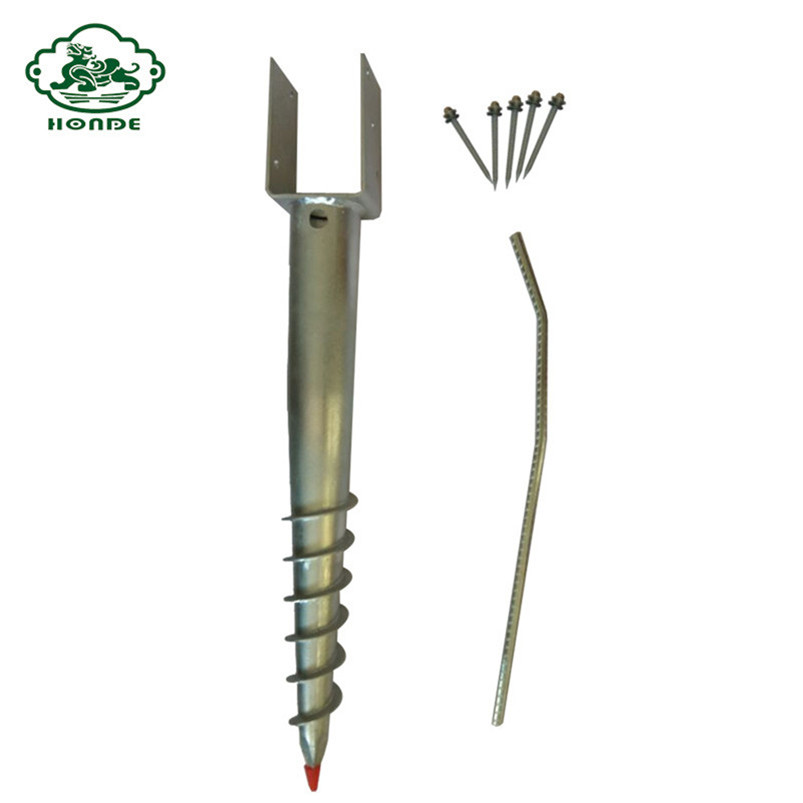

U Type Ground Screw Design

The U type ground screw design is suitable for timber applications. The intal length is 685mm and U open size is 71mm and length is 130mm. We designed 7 spirals and the thread pitch is 40mm, length is 280mm in total. Generally, the thickness of pipe we will designed 1.7mm and we will design a hole to let your metal bar through in. Different timber size we will advise you suitable size of U type ground screw and the U type ground screw design will make your fence looks more attractive.

Products Display

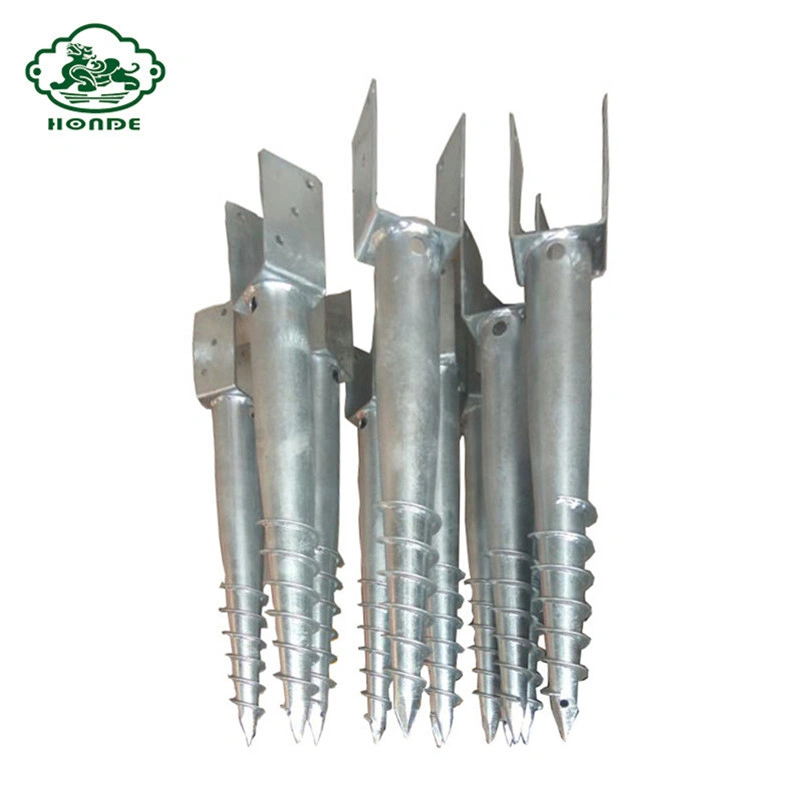

ground screw

Products Specification

Art No. Diameter(MM) Length(MM) U Open(MM)
HD U 71*685 68 685 71
HD U 71*865 68 865 71
HD U 91*685 68 685 91
HD U 91*865 68 865 91
HD U 91*1000
68 1000 91
HD U 111*865
68 865 111
HD U 111*1000 68 1000 111
HD U 121*1600 76 1600 121

Application

The ground screw foundation with U type flange usually is used with wooden pile for bunkhouse. As a connecting part, it can fix the wooden stake on the ground very well. The U open will installed outside of wooden stake and this installation method is very firmly.

ground screw

Installation

ground screw

Process flow

Every ground screw foundation will be produced as standard and tested strictly. Firstly, after we received your payment, we will purchase the best raw material for you at once. Secondly, cutting according to requirements and take the medium frequency heating. Thirdly, shrinking pipe and punching and then welding spiral points. Fourthly, galvanizing for ground screw foundation and testing carely. Lastly, we will pack the ground screw foundation and loading on container. Every producing step, we will arrange professional worker to take charge, so we can guarantee the quality of ground screw foundation is best.

ground screw

About Us

ground screw

HEBEI HONDE PLASTIC & METAL CO.,LTD is a company mainly engaged in ground anchor, Pile Driver and Solar Panel Mounting Brackets....The company was established in 2007, has many famous enterprises at abroad( such as KRINNER, ALD, LIDL, KEMRE company) to establish a long-term friendly business relationship. Our products are exported to Europe, Russia, Japan, Thailand, Holland, Australia, etc.

We have been accepted by ISO9001 quality system and BSCI, BV and CE certification and we have advanced automatic welding equipment. My company of "quality first, reputation first" principle, provide customers with quality and quantity of various types of products. Excellent quality, good reputation over the world, orders are welcome.

ground screws

ground screw

ground screw piles

Looking for ideal Ground Screw Design Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Ground Screw Deck are quality guaranteed. We are China Origin Factory of Ground Screw Anchors Nz. If you have any question, please feel free to contact us.
