Q235 Steel Galvanized Ground Screw
We are a factory who has produced ground screw for more than 10 years and we exported Screw Piles to all over the world. Our cooperative partner KRINNER, BAYO.S, JULA always purchase a lot of helix ground screw from us for many years. We can supply samples for you to check quality and we can supply installation instructions if you need. We have professional sales team to help you choose various types and specifications and quote the best price to help you save costs.
Solar Ground Screw:
We have many types for solar PV project such as Ground Screw Pile with 3 nuts or Krinner Ground Screw with adjustable plastic caps or Helical Screw Piles with different flanges ( round flange, square flange, hexagon flange, triangle flange, U flange and so on ) The design on flange can be produced as your drawing and we can send you samples to test in advance if you need.
We have common specifications for Ground Screw Anchor and also can customize sizes as your requirements.
We have common diameter 60mm, 68mm, 76mm, 89mm, 114mm, 219mm...
Length you can choose: 1000mm, 1200mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, 4000mm and so on
In general, thickness will as your requirements and we common thickness have 2mm, 2.5mm, 3mm, 3.75mm...
About qty, it`s certainly that more qty more cheaper price. Because the cost of large number will be less. Please send inquiry to our sales to quote best price as your exact requirements.
Products Details
Art No. | Diameter(MM) | Length(MM) | Nuts | Adjustment(MM) | Thickness(MM) | Weight(KG) | Customrized |
HDN 013 | 76 | 1800
| 3*M16 | 60 | 3 | 10.4 | Yes |
|
| Other Model | Diameter(MM) | Length(MM) | Nuts
| Adjustment(MM)
|
| HDN 009 | 76 | 1000 | 3*m6 | 60 |
| HDN 010 | 76 | 1200 | 3*m16 | 60
|
| HDN 011 | 76 | 1400 | 3*m16 | 60 |
| HDN 012 | 76
| 1600 | 3*m16
| 60
|
| HDN 013 | 76
| 1800 | 3*m16
| 60
|
| HDN 014 | 76
| 2000 | 3*m16 | 60 |
| HDN 015 | 89
| 1000 | 4*m12
| 34/40/48/60/76
|
| HDN 016 | 89
| 1200 | 4*m12
| 34/40/48/60/76
|
| HDN 017 | 114 | 1000 | 3*m16 | 40/48/60/70/75/90 |
| HDN 018 | 114 | 1400 | 3*m16 | 40/48/60/70/75/90 |
Products Display
In general, many customers will order Ground Screw Camping with manual tool. We can supply each earth anchors with a metal bar to help you finish the installation quickly.
Application
Earth Anchor can be used in many areas, you can use earth anchor in park, fence, flag, resting chair, pavilion, light and solar panel system etc. The wide range application make earth anchor sell well in the world. Whether you are seller or user, earth anchor will bring you much convenience and wealth.
Process flow

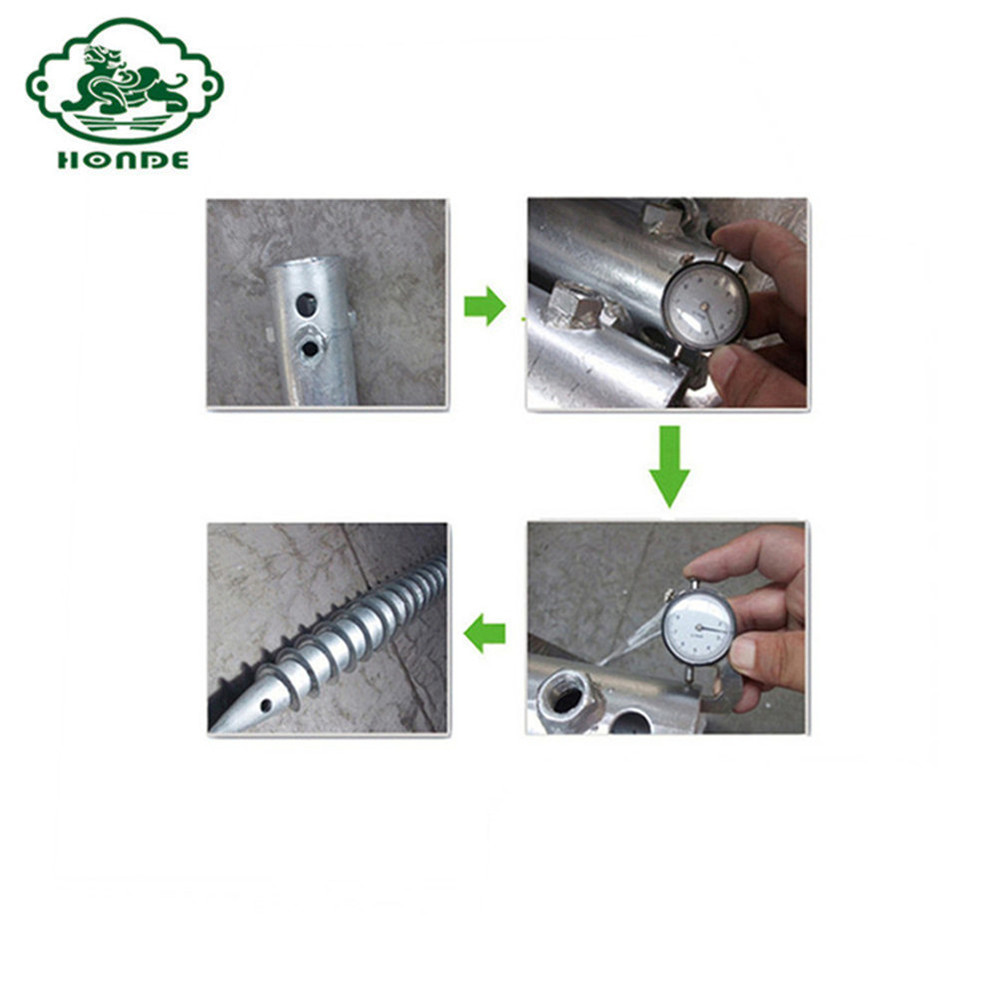

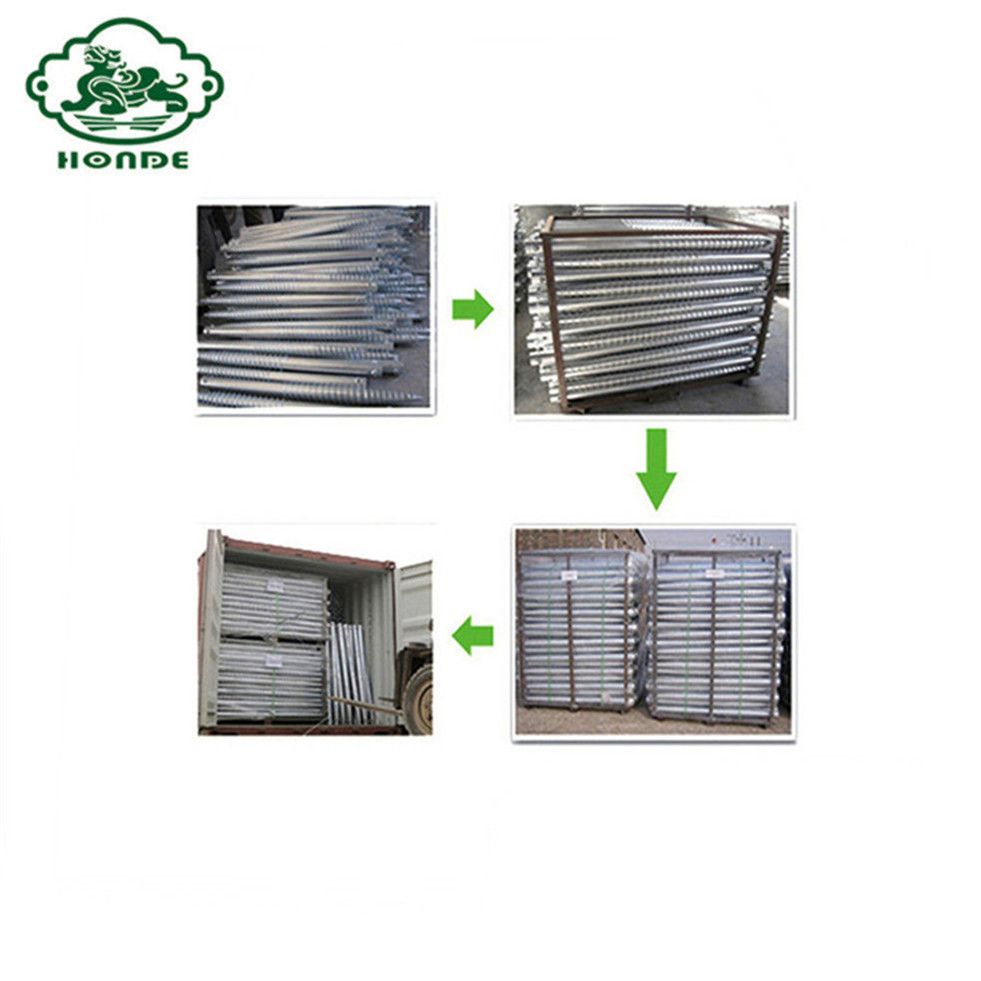

Every earth anchor will be produced as standard and tested strictly. Firstly, we will purchase the best raw material for you at once. Secondly, cutting according to requirements and take the medium frequency heating. Thirdly, shrinking pipe and punching and then welding spiral points. Fourthly, galvanizing for earth anchor and testing carely. Lastly, we will pack the earth anchor and loading on container. Every producing step, we will arrange professional worker to take charge, so we can guarantee the quality of earth anchor is best.
About Us
HEBEI HONDE PLASTIC & METAL CO.,LTD is a company mainly engaged in ground anchor, Pile Driver machine and solar mounting brackets...The company was established in 2007, has many famous enterprises at abroad ( such as KRINNER, ALD, LIDL, KEMRE company) to establish a long-term friendly business relationship. Our products are exported to Europe, Russia, Japan, Thailand, Holland, Australia, etc. We have been accepted by ISO9001 quality system and BSCI, BV and CE certification and we have advanced automatic welding equipment. My company of quality first, reputation first" principle, provide customers with quality and quantity of various types of products. Excellent quality, good reputation over the world, orders are welcome.
