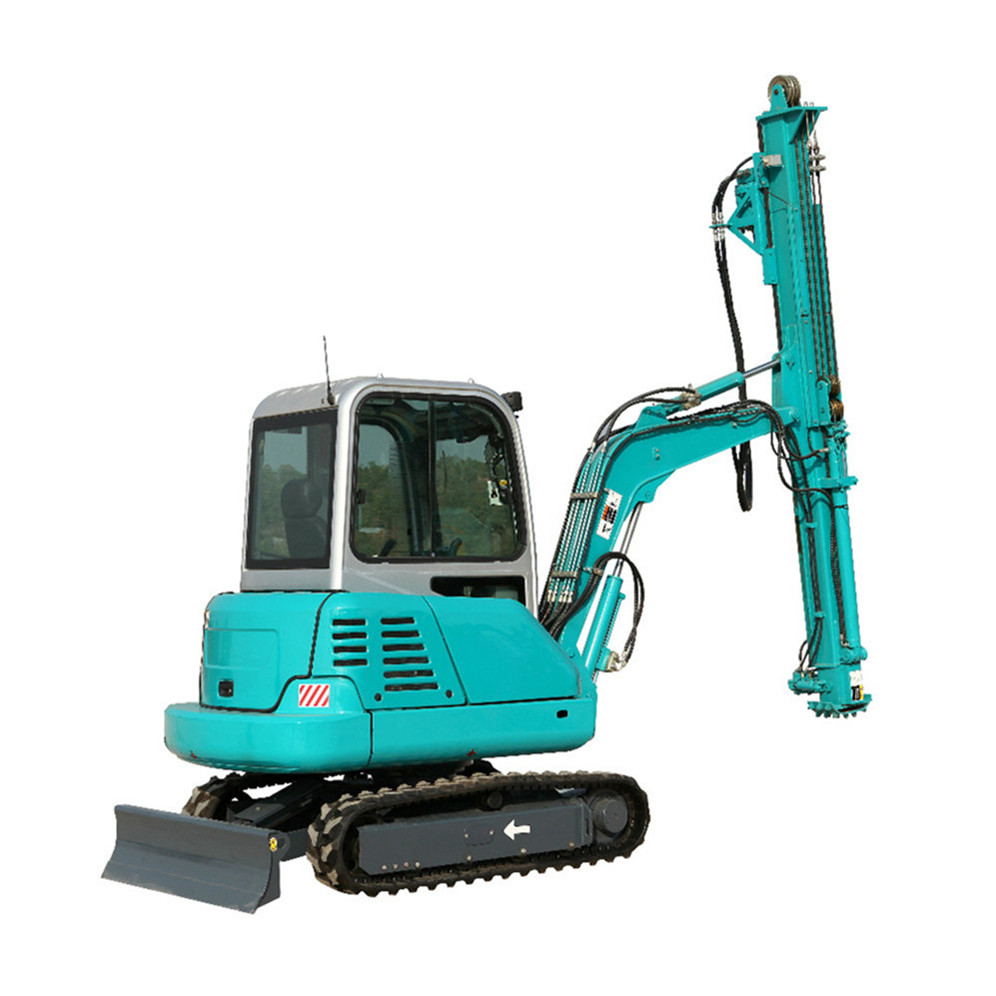

Solar Pile Driving Machine Ground Screw Driver

Payment Type:
L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:
FOB,CFR,CIF,FCA,CPT
Min. Order:
1 Piece/Pieces
Transportation:
Ocean,Land,Air
Port:
Xingang,Shanghai,As Negotiated
Share:
Chat Now
  • Product Description
Overview
Product Attributes

Model No.HD-H150

BrandHonde

Pile Diameter76mm

Pile Depth1800mm

Track Base1430mm

Gauge1150mm

Diamension5.65x1.4x2.6m

TypeScrew Pile Machine

Crawler Width250mm

Engine ModelYANMAR-3TNV82V

Feed Speed2m/s

After-sales ServiceEngineers Service Overseas

Supply Ability & Additional Information

PackagingIn 40 HQ

Productivity50 pcs per year

TransportationOcean,Land,Air

Place of OriginChina

Supply Ability100 pcs per year

CertificateISO9001,BSCI,CE,BV,TUV

HS Code8430100000

PortXingang,Shanghai,As Negotiated

Payment TypeL/C,T/T,D/P,Paypal,Money Gram,Western Union

IncotermFOB,CFR,CIF,FCA,CPT

Packaging & Delivery
Selling Units:
Piece/Pieces
Package Type:
In 40 HQ

Solar Pile Driving Machine Ground Screw Driver

We are manufacturer of Ground Screw for more than 10 years and many long-cooperative customers need one machine to install Screw Piles in solar PV mounting system. So we also develop Ground Screw Machine to meet customer`s needs. Here more details about our Pile Driver:

1. The ground screw machine is base on the excavator system, which can complete digging and drilling work by different work devices. Turntable can fully 360°swing, and whole machine is flexibly.

2. Easy and flexible operation: All actions including travel, dozer, turntable swing, work devices, pile rotation and feed etc. are all controlled by advanced hydraulic pilot valve. Work operation is in the cabin which can reduce operating force and operator`s load, and advance the control stability.

3.  Drill frame angle display is fit in the cab, which make operation clearly.

4. The machine is supplying special clamping fixtures for piles, easy assembling and disassembling, high efficiency.

5. The machine is supplying pile guiding device which can ensure the verticality of pile drill.




●This type spiral pile drill rig is a new type of simple drilling equipment with independent innovation, ideal for pile construction in solar panels, billboards, street lanp,fences, flagpoles, triffic signs, isolation net and simple houses, giving strong stratum adaptability and high efficiency.

The rig is equipped with a large torque rotary head for strong power, which provides strong adaptability in stratum.
The hydraulic system adjusts rotation and feed to the stratum conditions accurately, which ensures high drilling efficiency.
The rig is equipped with a pile guide device to guarantee pile verticality and quality.
The rig can be equipped with various pile connecting devices according to the pile structure and size,which makes pile insertion flexible and efficient.
In different stratum condition, the rig can be equipped with down-the-hole percussion, cutting, short spiral and other tools to achieve full stratum driling.

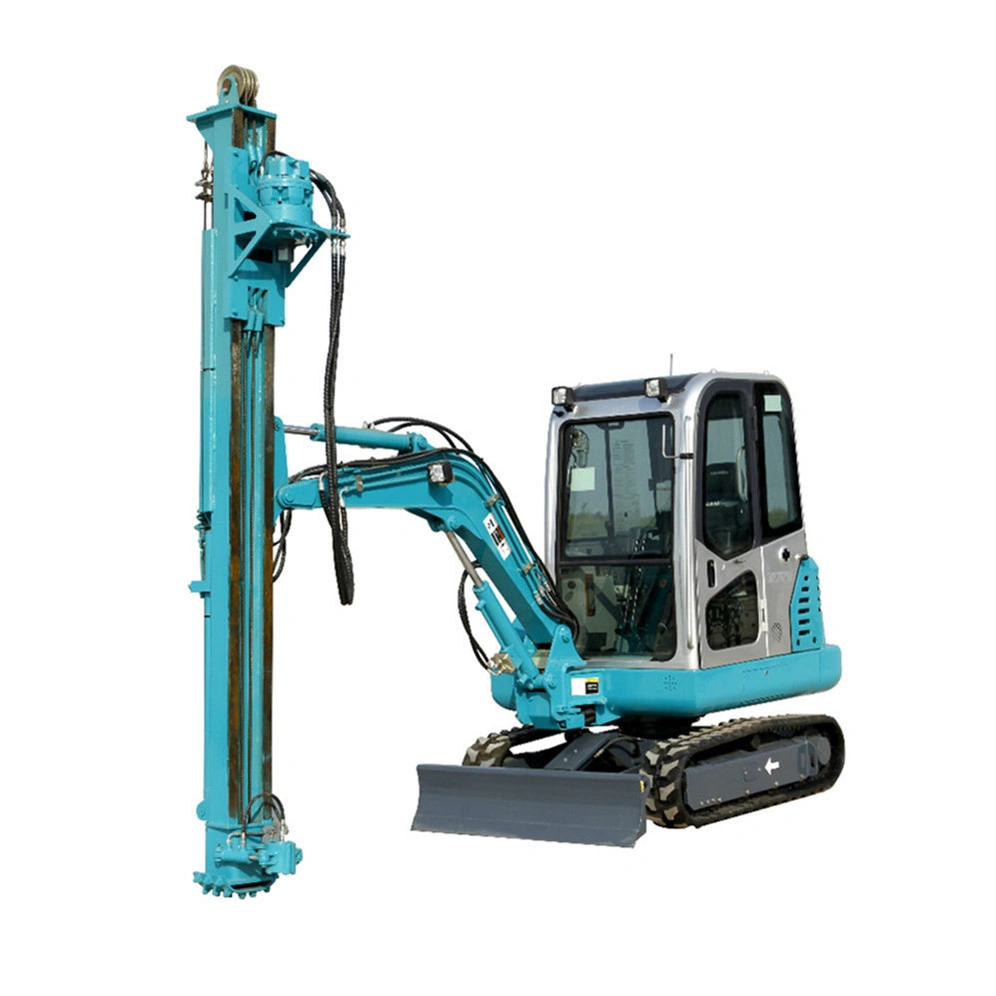

Helical Piles Machine Display

Pile Driver Machine For Solar

Pile Driver Machine For Solar


Helical Piles Machine Technical Data

Main Data Unit HD-H150 HD-H600 HD-H800
OPERATION PARAMETER
Pile diameter mm 76
76~90
76~200
Pile depth m 1.8
3 4
CHASSIS
Track base mm 1430 2240 2745
Gauge mm 1150 1680 2312
Crawler width mm 250 400 350
Ground clearance mm 280 340 460
Blade length mm 1400 2080 ---
ENGINE
Model
YANMAR-3TNV82A V3300-DI 4BT3.9
Displacement L 1.331 3.3 3.9
Power/Speed kw/rpm 16/2200 54.9/2600 75/2200
Full tank capacity L 42.5 140 300
FEED
Length of drillrig mm 3400 4800 6920
Feed length mm 2000 3500 4500
Feed speed m/s 2 3 4
Feed force kN 15 30 7.5
TRAVELLING
Travel speed km/h 4.7/2.6 4.5/3.1 3.2/2.0
Traction force, max kN 19 55 100
Hill climbing ability ° 20 25 25
ROTARY
Rotary speed, max rpm 40 40 40
Rotary torque, max N.m 1500/3000 6000 6000
DIAMENSION
Gross weight t 3 7.8 16
Diamension
m 5.65X1.4X2.6 8.5X2.2X3.15

9.04X2.95X3.4

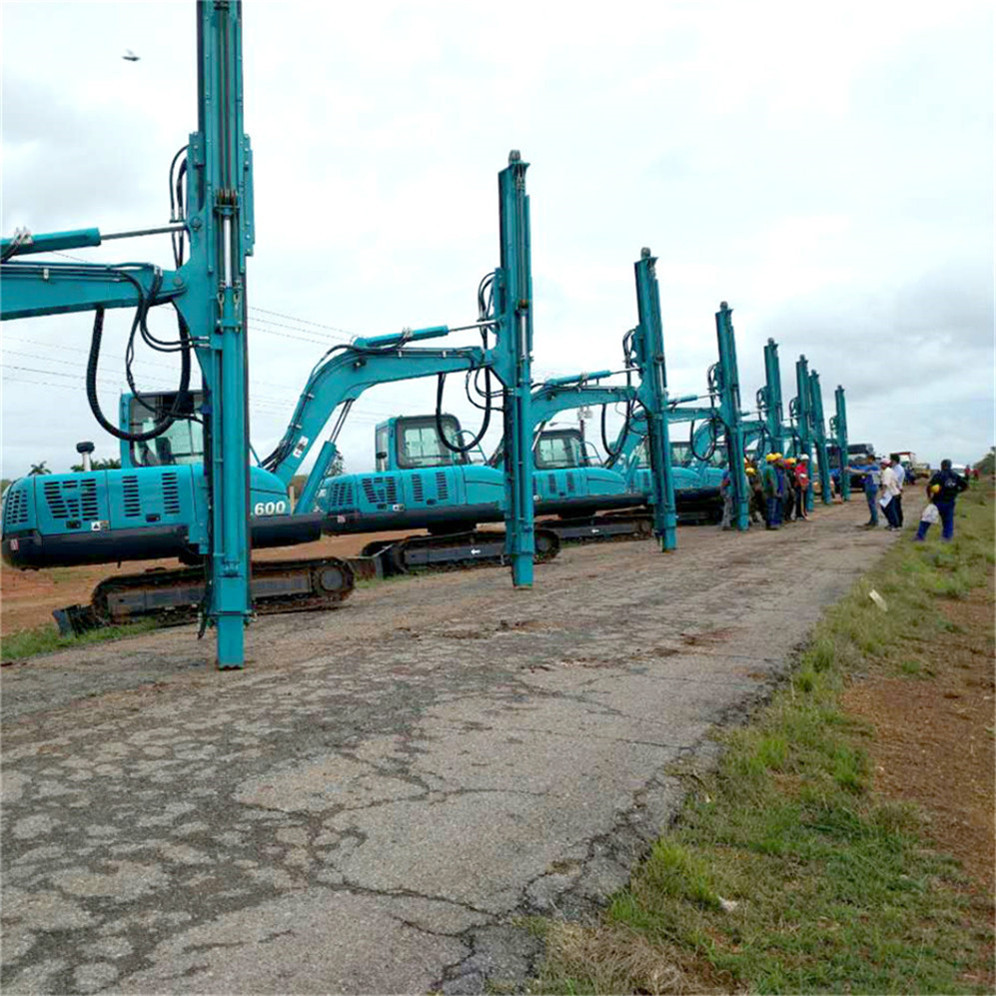

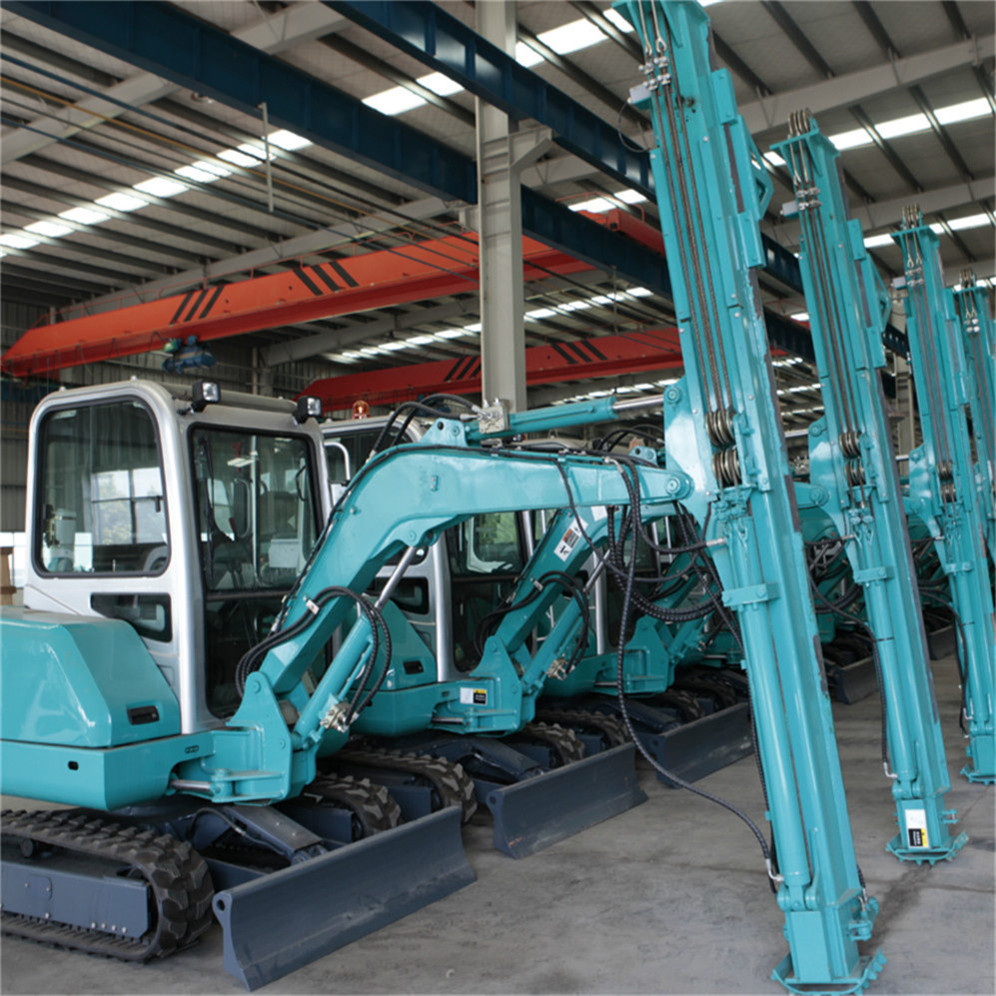

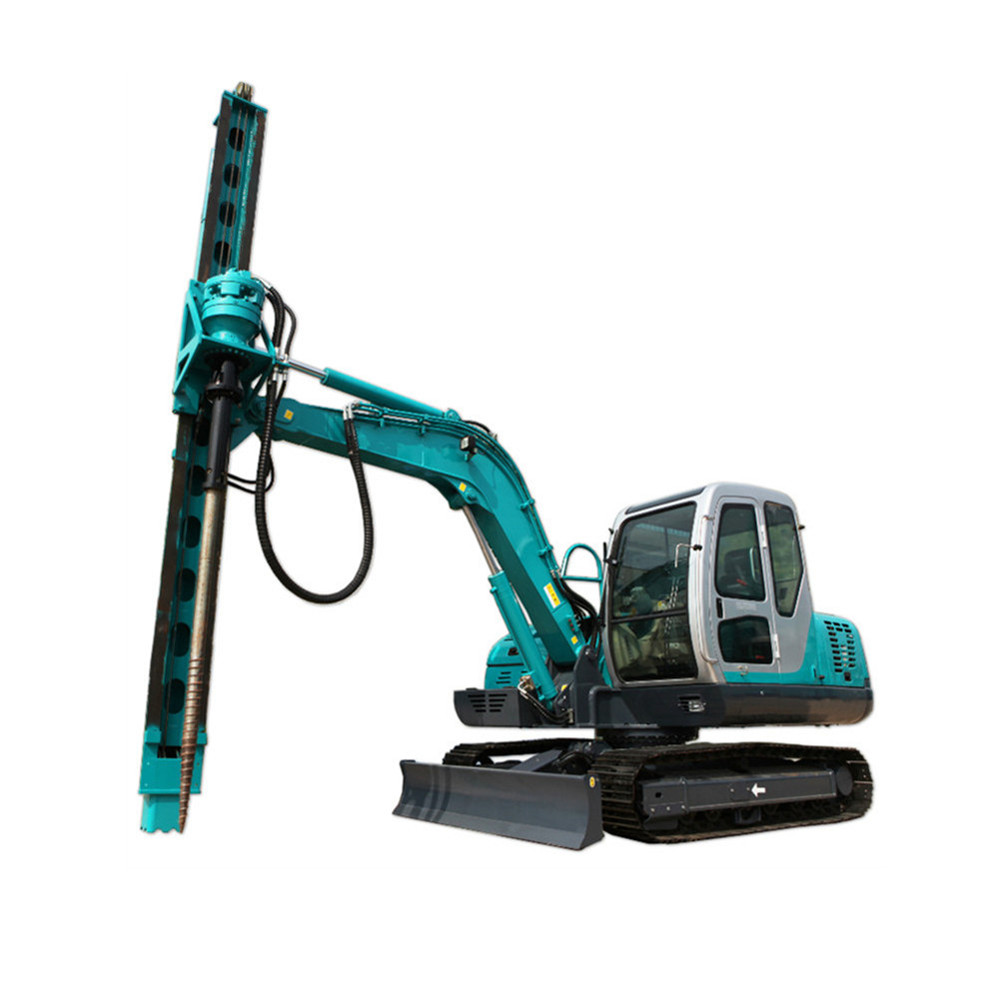

Helical Piles Machine Show

Pile Driver Machine For Solar

Pile Driver Machine For Solar

Pile Driver Machine For Solar

Pile Driver Machine For Solar
