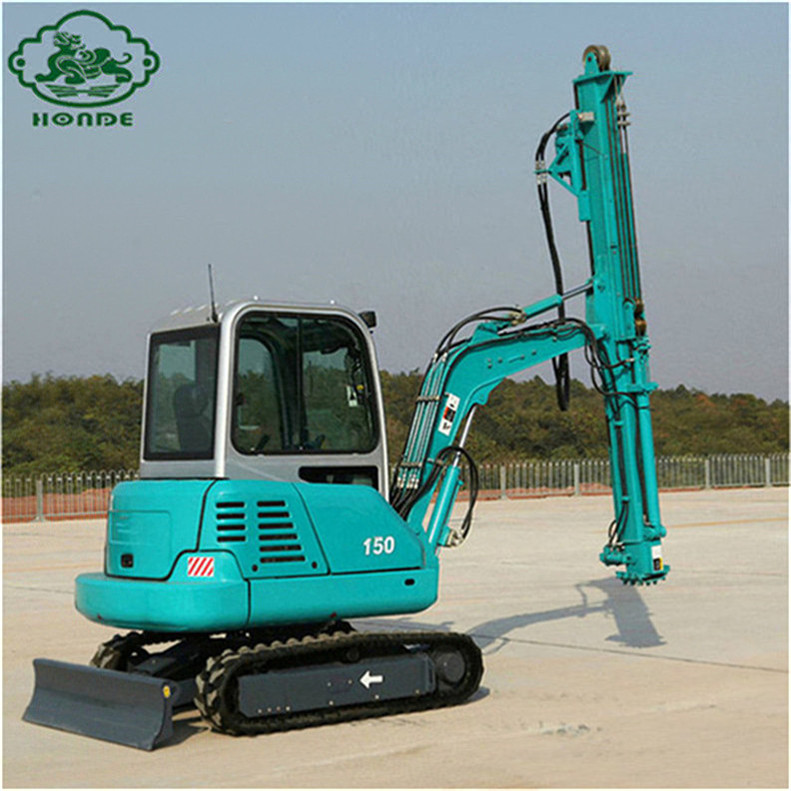

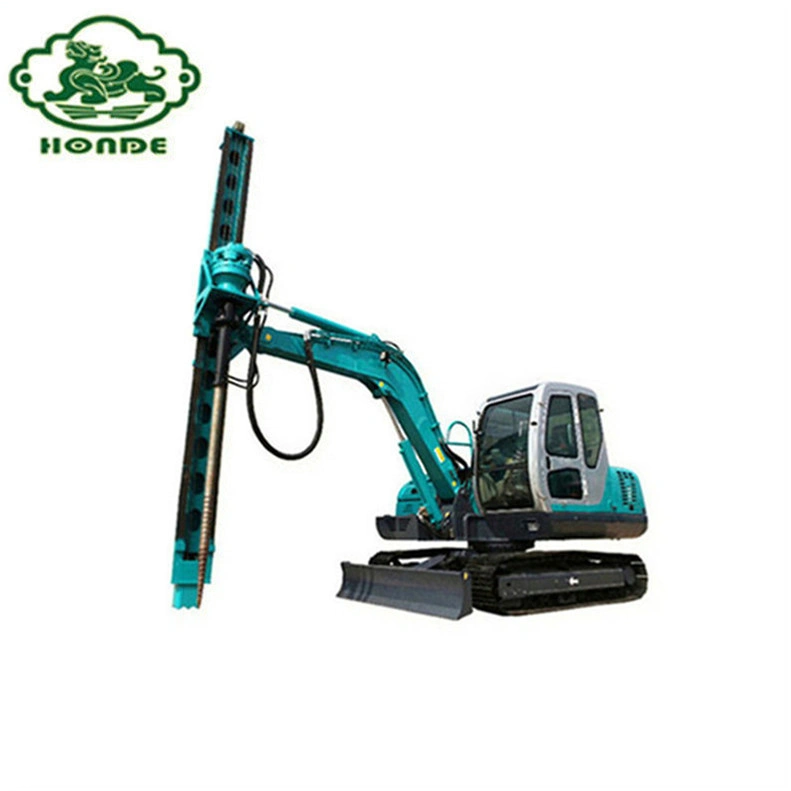

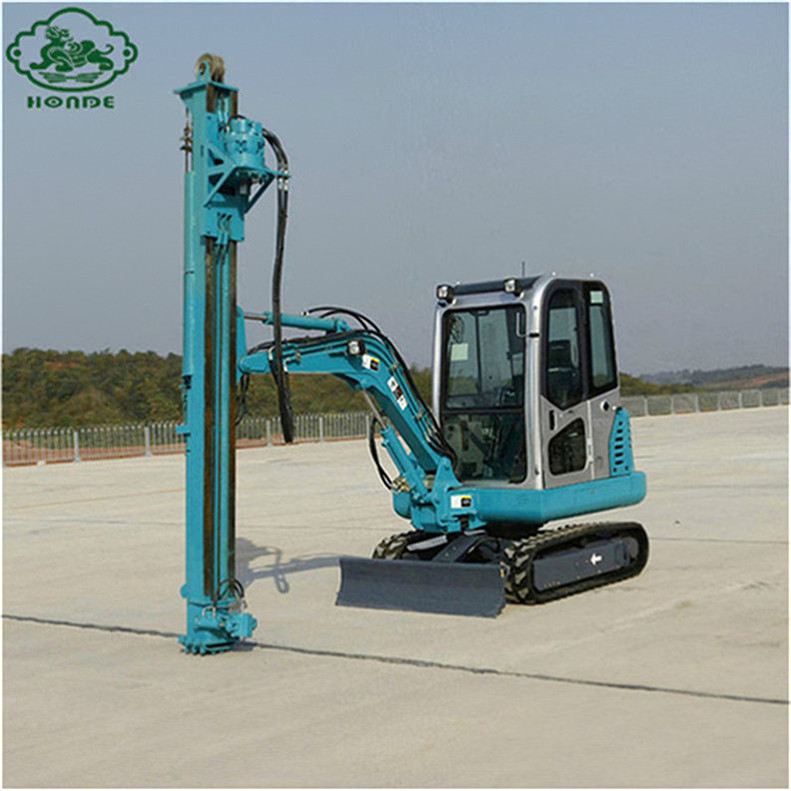

New Drilling Machine Specification And Models

Payment Type:
L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:
FOB,CFR,CIF,FCA,CPT
Min. Order:
1
Transportation:
Ocean,Land,Air,DHL/FedEx/TNT/EMS
Port:
Xingang,Shanghai,Ningbo
Share:
Chat Now
  • Product Description
Overview
Product Attributes

Model No.HD-H800

BrandHonde

TypeScrew Pile Machine

Pile Diameter76~200mm

Pile Depth4000mm

Track Base2745mm

Gauge2312mm

Crawler Width350mm

Engine Model4BT3.9

Feed Speed4m/s

Gross Weight16Tons

Diamension9.04x2.95x3.4m

Supply Ability & Additional Information

Productivity50 pcs per year

TransportationOcean,Land,Air,DHL/FedEx/TNT/EMS

Place of OriginChina

Supply Ability100 pcs per year

CertificateISO9001,BSCI,CE,BV,TUV

HS Code8430100000

PortXingang,Shanghai,Ningbo

Payment TypeL/C,T/T,D/P,Paypal,Money Gram,Western Union

IncotermFOB,CFR,CIF,FCA,CPT

New Drilling Machine Specification And Models


We are one of the biggest Pile Driver factory in China. You can order Helical Screw Piles and Pile Driver Machine together in one container.

Features of our Hydraulic Pile Driver

1. Combining the auger with strong crane,unique design specially for telegraph pole construction companies.

2. Have four hydraulic stabilizer legs, with cross-country 2 or 4 wheel-drive, with wide tires

3. 360° rotation gear motor, hydraulic hoisting and drilling system, combining the auger drill rig with crane, one equipment can realize the drilling and pole uprighting work, more efficient and cost-effective.

4. tractor as power, strong enough , strong cross-country power. Fully hydraulic driving. Full-automatic put and upright the pole.

Product Categories

Ground Screw For Road And Traffic Sign
Ground Screw For Timber Construction And Sheds
Ground Screw For Park And City Building
Ground Screw For Flag Poles And Banners
Ground Screw For Constructional Industry
Ground Screw For Beach Umbrella
Ground Screw For Fencing Industries
Ground Screw For Solar Power System
Earth Anchor
Electric Screw Driver
Manual Pile Driver
Screw Pile Machine


Product Display

Drilling Machine Parts And Functions

Technical Data


Main Data Unit HD-H150 HD-H600 HD-H800
OPERATION PARAMETER
Pile diameter mm 76
76~90
76~200
Pile depth m 1.8
3 4
CHASSIS
Track base mm 1430 2240 2745
Gauge mm 1150 1680 2312
Crawler width mm 250 400 350
Ground clearance mm 280 340 460
Blade length mm 1400 2080 ---
ENGINE
Model
YANMAR-3TNV82A V3300-DI 4BT3.9
Displacement L 1.331 3.3 3.9
Power/Speed kw/rpm 16/2200 54.9/2600 75/2200
Full tank capacity L 42.5 140 300
FEED
Length of drillrig mm 3400 4800 6920
Feed length mm 2000 3500 4500
Feed speed m/s 2 3 4
Feed force kN 15 30 7.5
TRAVELLING
Travel speed km/h 4.7/2.6 4.5/3.1 3.2/2.0
Traction force, max kN 19 55 100
Hill climbing ability ° 20 25 25
ROTARY
Rotary speed, max rpm 40 40 40
Rotary torque, max N.m 1500/3000 6000 6000
DIAMENSION
Gross weight t 3 7.8 16
Diamension
m 5.65X1.4X2.6 8.5X2.2X3.15

9.04X2.95X3.4
